12ga / 9ga / 6ga Metal Tie Wire Black Annealed For Building

12ga / 9ga / 6ga Metal Tie Wire Black Annealed For Building

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12ga / 9ga / 6ga Metal Tie Wire Black Annealed For Building Get Best Price

Product Details:
Place of Origin: Anping , China
Brand Name: Qingrui
Certification: ISO9001
Model Number: BWG8-BWG22
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: Negotiation
Packaging Details: woven bags inside and wooden pallets outside
Delivery Time: 20days if you need more
Payment Terms: L/C, T/T, Western Union,Paypal,Trade asscurance,Credit card
Supply Ability: 2000 rolls per week
Detailed Product Description
Product Name: Metal Tie Wire Surface Treatment: Black
Type: Metal Tie Wire Function: Baling Wire
Model Number: Q195/Q235 Application: Building / Annealed Wire
Tensile Strength: 350-550mpa Size: BWG8-BWG22
Material: Q195/Q235/SAE1006/SAE1008 Package: Plastic Inside And Outside,45.36kg/roll,10 Rolls In A Small Package,20 Rolls In A Large Package
High Light:

black annealed building metal tie wire

,

6ga metal tie wire

,

12ga black annealed tie wire

12GA / 9GA / 6GA Black Annealed Wire For Biulding Metal Tie Wire





Metal Tie Wire introduction



Metal tie wireis also known as tie wire or binding wire. It is easy to operate, therefore it's widely uses in binding of different materials, especially for daily use.



Metal Tie Wire Data :



  • Product name : Rebar Tie Wire,Annealed Wire,Black Rebar Tie Wie
  • Material : Low carbon steel material
  • Wire : Galvanized wire , black rebar tie wire , pvc coated wire
  • Hot sale size : 10#,12#,14#,16#,17#,18#,20# customerized
  • Wire sizes : 0.70mm to 40mm
  • Forms of Supply : Straightened cut wire, U type wire, coil wire, etc.
  • Roll weight : 200g,400g,500g, 1kg, 1.42kg(3.5lbs),5kgs ...
  • MOQ : 1TonsDelivery timeWithin 15 days
  • Sample : Free
  • Package : 3.5 lbs/coil, 20 coils/ctn, 48 ctns/pallet, 13 pallets/20GP container,Different coil diameter or coil weight available for customers’ choice
  • Raw material : Q195 Q235 SAE1006 SAE1008Usage :Binding wire



Metal Tie Wire specification as blows :



Gauge SWG BWG AWG
Inch MM Inch MM Inch MM
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0453 1.291
17 0.056 1.422 0.058 1.473 0.0403 1.15
18 0.048 1.219 0.049 1.245 0.0359 1.024
19 0.04 1.016 0.042 1.067 0.032 0.912
20 0.036 0.914 0.035 0.839 0.0285 0.812
21 0.032 0.813 0.032 0.831 0.02535 0.723
22 0.028 0.711 0.028 0.711 0.02256 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405



Metal Tie Wire Features



1: exhibit attractive properties as high strength and ductility, good corrosion resistanc

2: clean and convenient

3: unbreakable, Tensile strength is 300-380mpa

4: durable , After high temperature treatment, the ductility can reach 15% - 20%

5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding



Metal Tie Wire Usage / Application



Use a kind of wire twister to tie the two ends of the double loop wire together.

Loop tie wire How to use: Hook the two rings of the buckle with a hooked wire tool and tighten it in one direction.

  1. Used as tie wires to bind bags and rebars.

  2. Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises

  3. Applied in the farm to bundle twigs.

  4. erecting and joining support structur

  5. Tying bags or as a ma or laundry bag seal

  6. Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.

  7. Small coil wire tie finds most uses in binding of different materials especially for daily use



Loop tie Wire information:


A, Material low carbon steel wire
B , Wire diameter 1mm-2mm
C , Length4-24inch
D , Surface Black annealed, copper, galvanied or PVC coated
E , Feature It is easy to operate, enhances the working efficiency reduces pollution
F, Use The loop wire es as a binding wire used in packing or construction



Technical principle of Metal Tie Wire :



Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.



Solution to blackening of galvanized wire:

One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;

The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;

Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.



Metal Tie Wire Process :



First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment



Our services



Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.

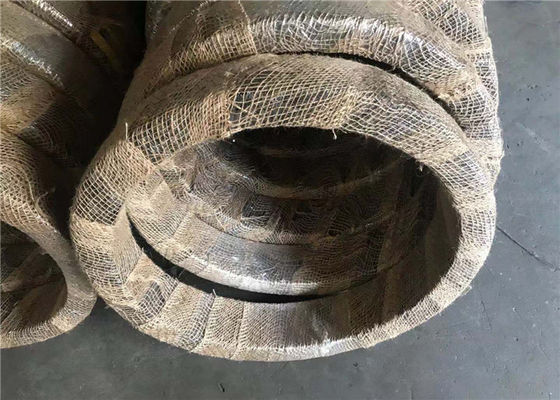

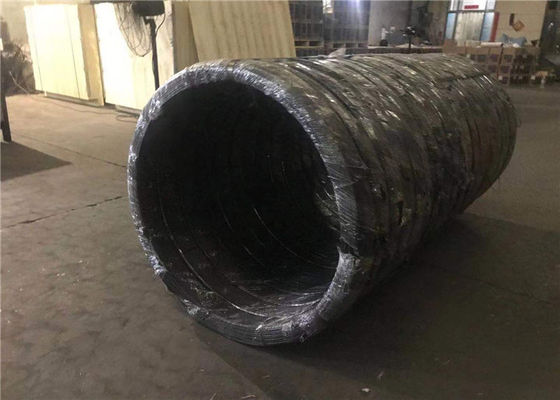

Metal Tie Wire Packaging Details



1. Bundled together by tie wire.

2. plastic inside and cartons outside.

3. plastic inside and woven bags outside.

4. water-proof paper inside and woven bags outside

5. or as your demand



12ga / 9ga / 6ga Metal Tie Wire Black Annealed For Building 0



12ga / 9ga / 6ga Metal Tie Wire Black Annealed For Building 1
