Product Details:
Payment & Shipping Terms:
|
Product Name: | Black Soft Annealed Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Black Loop Tie Wire | Function: | Baling Wire Etc |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | 4,000/roll Etc |
High Light: | 16 gauge black annealed tie wire,350mpa black annealed tie wire,iron 16 gauge annealed wire |

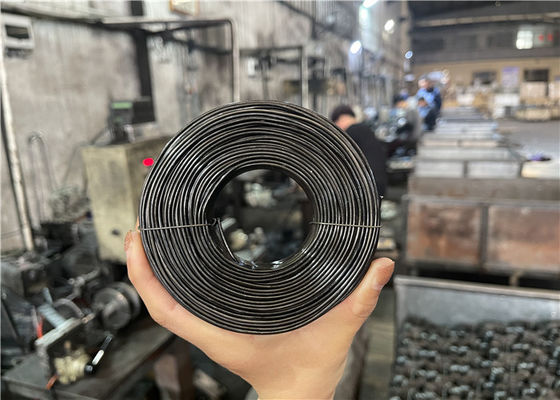

black annealed tie wire is also known as black annealed wire, soft annealed wire and annealed
iron wire. Black iron is made of carbon steel wire and obtained by means of thermal
annealing. Annealed wire offers excellent flexibility and softness through the process of
oxygen free annealing.
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 |
0.405 |
We have professional inspection team to inspect the wire quality.Before the delivery.
We will test the product's Material, Wire diameter, Weight and other items.
Our products are guaranteed the quality.
1 Rich experience production team
Our company was established in 2009 and it has 5000 m2 production workshop, Hundreds of skilled technicians, Dozens of production and processing lines. We have many years of experience in the wire mesh field.
2 Professional quality inspection system
We have a strict quality inspection system and a professional testing team, we guarantee product quality
3 Perfect serice system
24 hours on-line service
Free samples if stocked
Quality problem we could accept the products return
Competitive price with superior higher quality products
Professional team to solve all your questions
Mainly used for daily use, woven wire mesh, construction, handicrafts, industrial arts,factory processing and so on
Used as tie wires to bind bags and rebars.
Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises
Applied in the farm to bundle twigs.
erecting and joining support structur
Tying bags or as a ma or laundry bag seal
Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.
Small coil wire tie finds most uses in binding of different materials especially for daily use
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment
Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.
