Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire

Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire

Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire
Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire

Large Image :  Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire Get Best Price

Product Details:
Place of Origin: Anping , China
Brand Name: Qingrui
Certification: ISO9001
Model Number: BWG8-BWG22
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: Negotiation
Packaging Details: woven bags inside and wooden pallets outside
Delivery Time: 20days if you need more
Payment Terms: L/C, T/T, Western Union,Paypal,Trade asscurance,Credit card
Supply Ability: 2000 rolls per week
Detailed Product Description
Product Name: Coppered Tie Wire Surface Treatment: Black/pvc/galvanized
Type: Coppered Tie Wire Function: Baling Wire
Model Number: Q195/Q235 Application: Building / Rebar Ties
Tensile Strength: 350-550mpa Size: BWG8-BWG22
Material: Q195/Q235/SAE1006/SAE1008 Package: 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol
High Light:

5000pcs Copper Tie Wire

,

18GA Copper Tie Wire

,

550mpa Coppered Tie Wire

3-1/2" Copper Coated 18 ga Double Loop Wire Ties- 5000 pcs Coppered Tie Wire


Copper Tie Wire introduction:

Copper Tie Wire is a kind of metal wire mainly used for binding and sealing. For example, it can be used to bundle up gunny sacks. It is also often used to bind weaving bags and seal sacks, or for the purpose of bundling in construction or for daily uses. Double loop wire tie is very easy to use. You just need to hook up the double loop at two ends of the loop tie wire using a loop tie wire tool with hooks, and then twist the wire in one direction. It is easy to operate and simply. Immediately increase efficiency, reduce pollution.

Material:copper coated wire Copper wire
Wire diam.: 0.5mm---2.0mm
Wire gauge: BWG6 to BWG20
Lengths: 3" up to 10"
Packaging : 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/roll
Rolls packed by woven bag then with pallet.
We have the specific production workshop of Wire Ties. We can manufacture all of sizes with different finishes. We will also custom-produce loops and lengths to your specifications.


We have became the biggest Wire Ties Manufacturer in China.

The sample can supply free, if you want to know the quality, I am glad to help


Copper Tie Wire specification as blows :


Gauge SWG BWG AWG
Inch MM Inch MM Inch MM
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0453 1.291
17 0.056 1.422 0.058 1.473 0.0403 1.15
18 0.048 1.219 0.049 1.245 0.0359 1.024
19 0.04 1.016 0.042 1.067 0.032 0.912
20 0.036 0.914 0.035 0.839 0.0285 0.812
21 0.032 0.813 0.032 0.831 0.02535 0.723
22 0.028 0.711 0.028 0.711 0.02256 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405


Copper Tie Wire Usage / Application


  1. Used to bind recycling corrugated cardboard material.
  2. In the use of recycling used clothing and rags.
  3. In the use of recycling scrap metal, such as aluminum and copper.

Copper Tie Wire Packaging Details


  1. Each bundle is wrapped with recyclable plastic bag, which can protect it from abrasion.
  2. All single loop tie wires have head bagged for protection.
  3. Products can be delivered in straight bundles or in coiled form.
  4. Pallet package can prevent the product from being damaged in the process of storage and transportation.


Copper Tie Wire Features

easy to bend and operate, good corrosion resistance, high working efficiency, fast tying, etc.

Technical principle of Copper Tie Wire:

Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.

Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.

Copper Tie Wire Process :

First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment

Our services

Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.

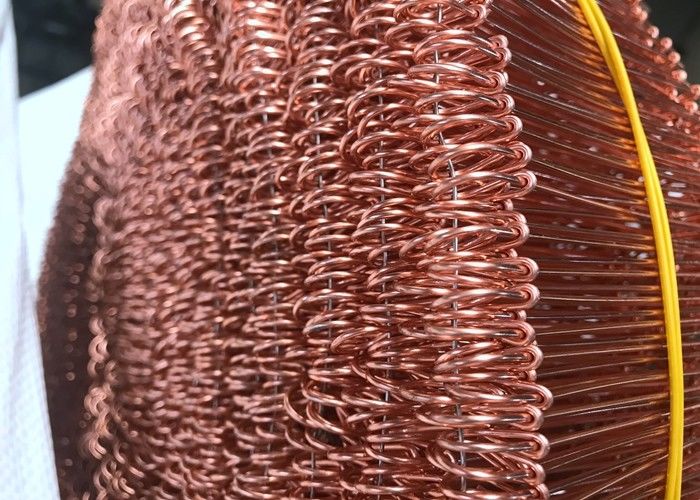

Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire 0

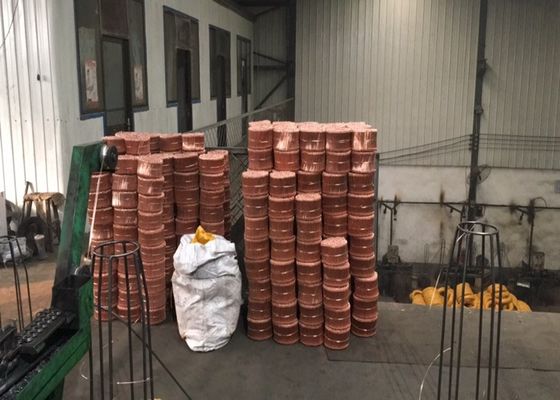

Building PVC Coated 18GA 5000pcs 550mpa Copper Tie Wire 1
