Product Details:
Payment & Shipping Terms:
|
Product Name: | Rebar Tie Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Rebar Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | Plastic Inside And Hessian Cloth Outside, Plastic Inside And Woven Bag Outside, Or According To Customers' Requirement |
High Light: | 0.7mm Metal Binding Wire,BWG22 Metal Binding Wire,BWG22 Rebar Tie Wire |
Zinc Coated Then Redrawing Tie Wire /Galvanized Binding Wire Bwg 20 Rebar Tie Wire
Rebar Tie Wire Introduction
Rebar tie wire is also known as tie wire or binding wire. It is easy to operate, therefore it's widely uses in binding of different materials, especially for daily use.
Features:black rebar tie wire is rust proof within 6 months without any oil coating. The tensile strength is 300-400 Newton per square millimeter.
Wire sizes: Wire diameter ranges from 0.70mm to 40mm.
Forms of Supply: Straightened cut wire, U type wire, coil wire, etc.
Application: black rebar tie wire is mainly used as industrial wire, construction wire, industrial bale tie wire and constructional tie wire, etc.
A, Material low carbon steel wire
B , Wire diameter 1mm-5mm
C , Weight 0.05-5kg
D , Surface Black annealed, copper, galvanied or PVC coated
E , Feature It is easy to operate, enhances the working efficiency reduces pollution
F, Use The loop wire es as a binding wire used in packing or construction
Rebar Tie wire for automatic wire drawing machine
1, Made of high quality annealed wire
2, Quick and easy to use
3, Low-cost Chinese production
4, Low labour intensity
5, Reducing Labor Injury
6, We have super Rich Export Experience,Strict quality control and most honest management.
7, New plastic materils reel (no easy breaking);
8, Selective high quality wire coils
9, Available for more kinds of rebar tying machines of MAX RB395 /RB397/RB398
10, Fast delivery & professional after sale services.
Rebar Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |

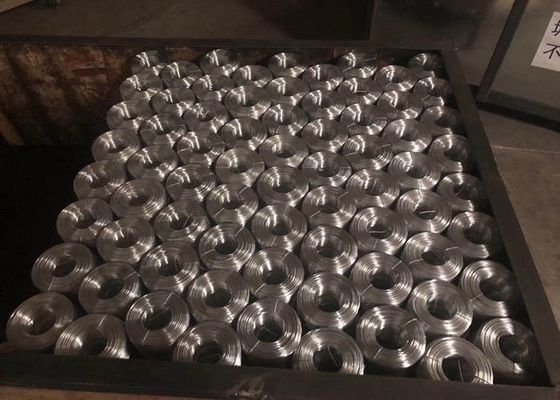

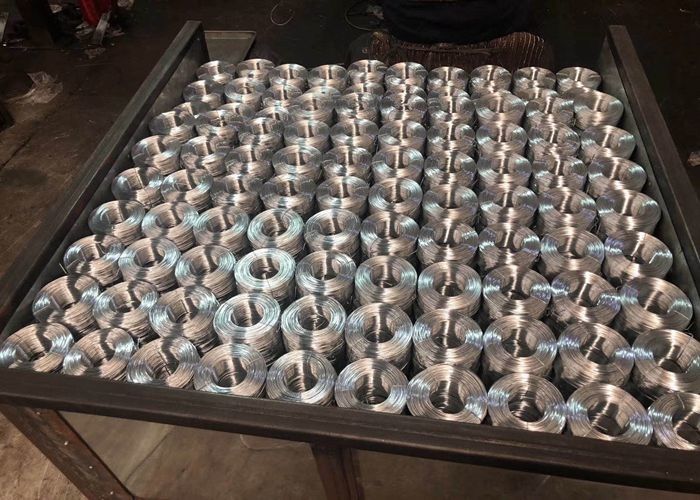

Rebar Tie Wire Packaging Details
Packaging Details: plastic inside and hessian cloth outside, plastic inside and woven bag outside, or according to customers' requirement.and or 200g,400g,500g, 1kg, 1.42kg(3.5lbs),5kgs ...3.5 lbs/coil, 20 coils/ctn, 48 ctns/pallet, 13 pallets/20GP container.
Small coil silk is a heavy cargo product. In order to facilitate transportation, it is recommended to use pallets for packaging. Each tray is subject to regular fumigation treatment, which can keep dry and odorless in the closed space for a long time. The firm design can provide solid and reliable transportation guarantee for the products.
In order to prevent the products from long-term floating on the sea, the factory puts plastic bags inside each carton to prevent the products from rusting. In addition, it has more beautiful and more guaranteed packaging. Each roll of a small plastic bag and blister treatment strictly controls the contact between the product and the air.
Technical principle of Rebar Tie Wire :
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
Our services:
Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.
