BWG8 Galvanized Double Loop Wire Ties

BWG8 Galvanized Double Loop Wire Ties

BWG8 Galvanized Double Loop Wire Ties
BWG8 Galvanized Double Loop Wire Ties BWG8 Galvanized Double Loop Wire Ties BWG8 Galvanized Double Loop Wire Ties BWG8 Galvanized Double Loop Wire Ties

Large Image :  BWG8 Galvanized Double Loop Wire Ties Get Best Price

Product Details:
Place of Origin: Anping , China
Brand Name: Qingrui
Certification: ISO9001
Model Number: BWG8-BWG22
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: Negotiation
Packaging Details: woven bags inside and wooden pallets outside
Delivery Time: 20days if you need more
Payment Terms: L/C, T/T, Western Union,Paypal,Trade asscurance,Credit card
Supply Ability: 2000 rolls per week
Detailed Product Description
Product Name: Galvanized Loop Tie Wire Surface Treatment: Black/pvc/galvanized
Type: Galvanized Loop Tie Wire Function: Baling Wire
Model Number: Q195/Q235 Application: Building / Rebar Ties
Tensile Strength: 350-550mpa Size: BWG8-BWG22
Material: Q195/Q235/SAE1006/SAE1008 Package: 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol
High Light:

1mm Galvanized Double Loop Wire Ties

,

BWG8 Galvanized Double Loop Wire Ties

6'' Galvanized Annealed Double Loop Wire Ties For Baling Wire Galvanized Double Loop Wire Ties



Galvanized Double Loop Wire Ties introduction:

Galvanized Double Loop Wire Ties is also known as tie wire or binding wire. It is easy to operate, therefore it's widely uses in binding of different materials, especially for daily use. The main materials of loop tie wires are galvanized iron wire, black annealed iron wire, PVC-coated iron wire and copper wire.

  • Types: copper double loop tie wire, galvanized double loop tie wire, PVC coated double loop tie wire, stainless steel double loop tie wire, etc.

  • PVC coated color: green, blue, black, yellow, red, etc.

  • Wire diameter: 0.7 mm - 4 mm.

  • Length: from 4" - 24".

  • Wire diameter and lengths can be made according to your needs.

  • Packing: packaged in 500, 1000, 2000, 5000 pieces/bundle, then in gunny bag or carton, or by pallets
  • Have exported : USA, Canada ,North of European, South Africa , etc


Galvanized Double Loop Wire Ties specification as blows :


Gauge SWG BWG AWG
Inch MM Inch MM Inch MM
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0453 1.291
17 0.056 1.422 0.058 1.473 0.0403 1.15
18 0.048 1.219 0.049 1.245 0.0359 1.024
19 0.04 1.016 0.042 1.067 0.032 0.912
20 0.036 0.914 0.035 0.839 0.0285 0.812
21 0.032 0.813 0.032 0.831 0.02535 0.723
22 0.028 0.711 0.028 0.711 0.02256 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405


Galvanized Double Loop Wire Ties Features

1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding


Technical principle of Galvanized Double Loop Wire Ties :

Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.

Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.

Galvanized Double Loop Wire Ties Process :

First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment

Our services

Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.

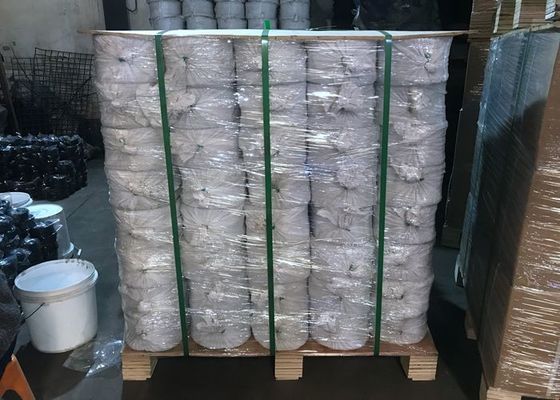

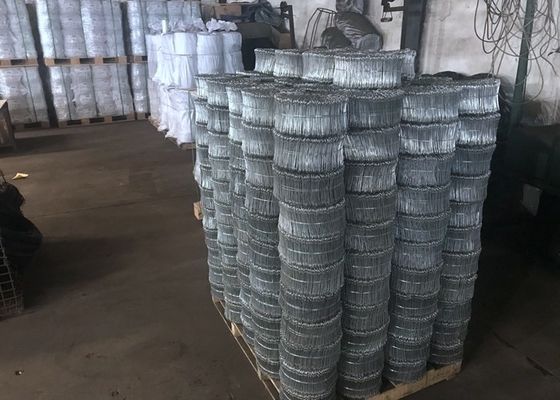

Galvanized Double Loop Wire Ties Packaging Details

1. Bundled together by tie wire.
2. plastic inside and cartons outside.
3. plastic inside and woven bags outside.
4. water-proof paper inside and woven bags outside
5. or as your demand

BWG8 Galvanized Double Loop Wire Ties 0

BWG8 Galvanized Double Loop Wire Ties 1
