Product Name: | Bar Tie Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Bar Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol |
High Light: | 17 Gauge Black Binding Wire,SAE1006 Black Binding Wire,2000pcs Black Binding Wire |

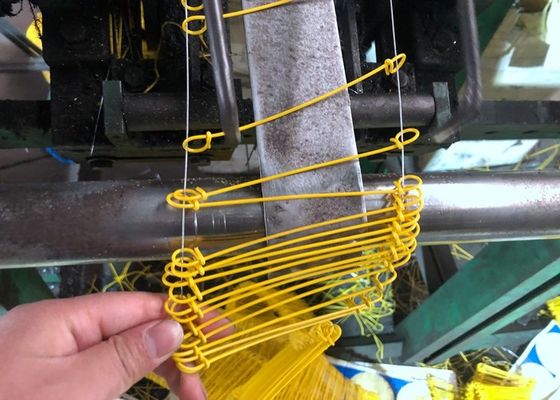

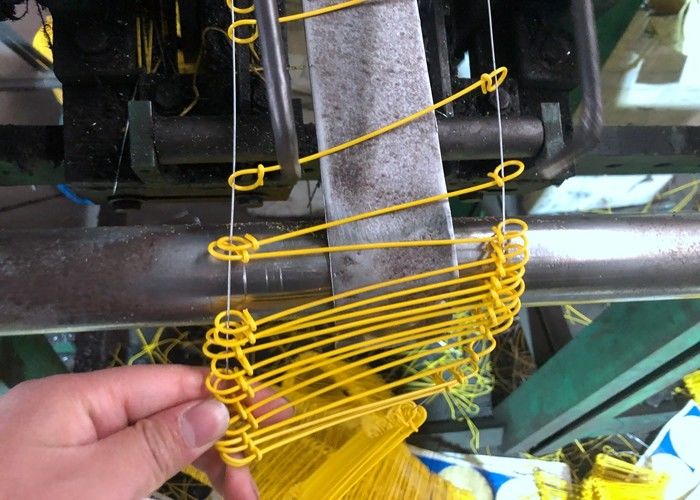

Easily Twist Double Loop Wire 16 Gauge PVC Coated Material Low Carbon Steel Wire Bar Tie Wire
Bar Tie Wire Data :
Product name: | Double Loop Rebar Wire,Loop Wire,Bar Tie |
Surface: | Black , galvanized , pvc coated |
Common diameter: | 17G 16G, customerized |
Raw material: | Q195 Q235 SAE1006 SAE1008 |
Packing: | general 500 or 1000pcs/bundle,plastic bag,then several bags in a carton with pallets,also just woven bags with pallets Our packing also can be as per buyer's requirement. |
Usage : | tie wire |
Types: | copper double loop tie wire, galvanized double loop tie wire, PVC coated double loop tie wire, stainless steel double loop tie wire, etc. |
Wire diameter: | 0.7 mm - 4 mm |
Length: | from 4" - 24" |
Bar Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Technical principle of Bar Tie Wire :
Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
Bar Tie Wire Process :
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment
Our services
Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.

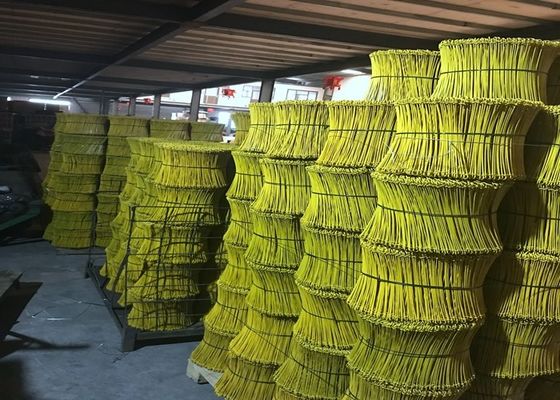

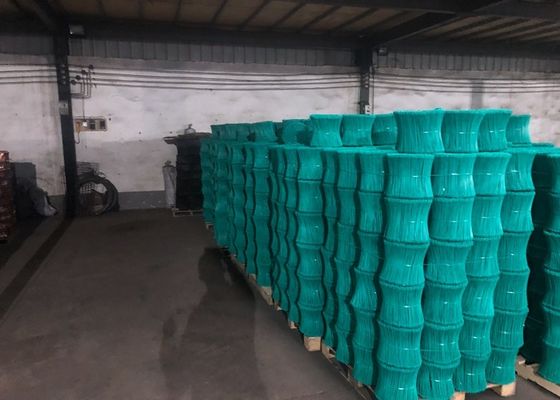

Bar Tie Wire Packaging Details
1. Bundled together by tie wire.
2. plastic inside and cartons outside.
3. plastic inside and woven bags outside.
4. water-proof paper inside and woven bags outside
5. or as your demand
