Product Name: | Hot Dipped Galvanized 1.2mm 1.2kg Double Loop Rebar Tie Wire | Surface Treatment: | Galvanized |
---|---|---|---|
Type: | Galvanized Rebar Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | Plastic Inside And Hessian Cloth Outside, Plastic Inside And Woven Bag Outside, Or According To Customers' Requirement |
High Light: | hdg coated rebar tie wire,1.2mm double loop rebar tie wire,1.2kg double loop rebar tie wire |

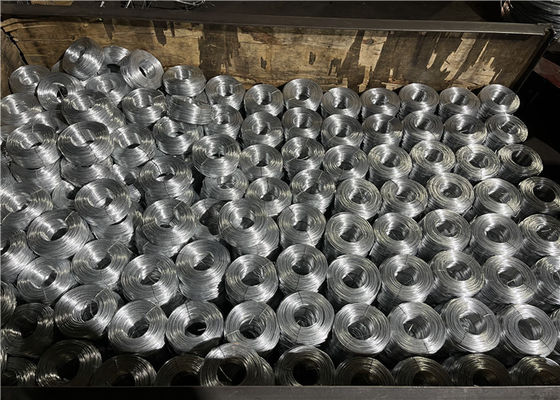

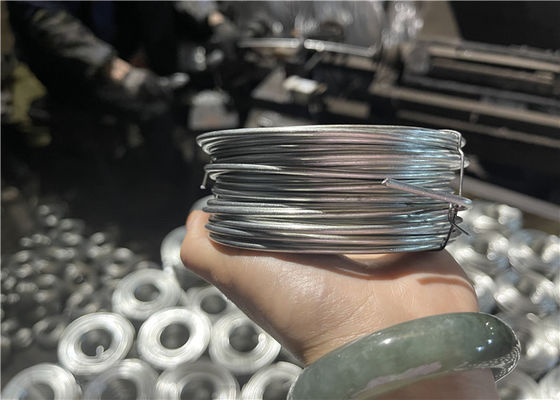

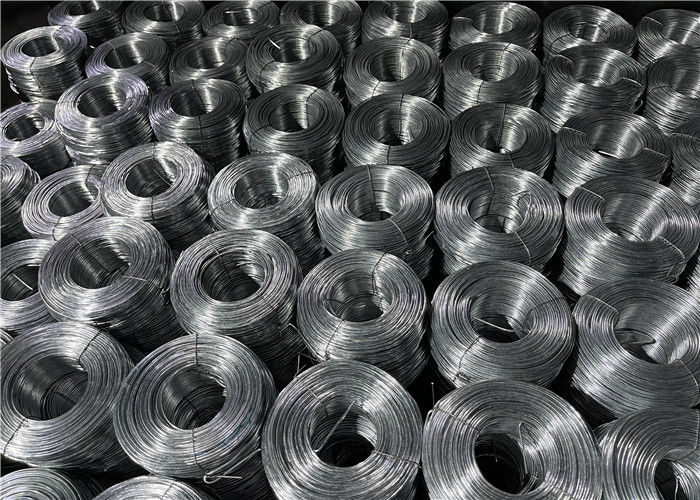

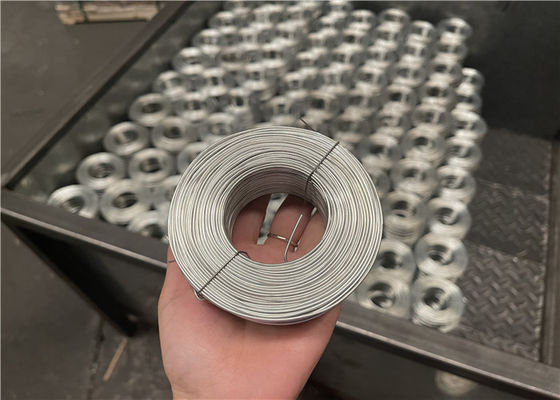

Hot Dipped Galvanized Steel Tie Wire Electro 1.2mm 1.2kg Galvanized Rebar Tie Wire
Galvanized Rebar Tie Wire Introduction
Galvanized rebar tie wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.
Galvanized rebar tie wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.
Galvanized Rebar Tie Wire Specification;
Material : low carbon steel wire (Q195)
Categories: black annealed tie wire ,E.G. ironwire,hot dipped galvanized iron wire.
Wire diameter (thickness) :8ga – 24ga.
Weight : 1.25lb/roll, 3.5lb/roll,50lb/roll,100lb/roll. Or on your decision.
Package : plastic film inner and burlap wrapped /coil,20rolls/box,24 boxes/pallet etc.
Grade: Q195
Size: Various
Standard: Galvanised
Certification: ISO9001, SGS, CTI, ROHS
Galvanized Rebar Tie Wire for automatic wire drawing machine
1, Made of high quality annealed wire
2, Quick and easy to use
3, Low-cost Chinese production
4, Low labour intensity
5, Reducing Labor Injury
6, We have super Rich Export Experience,Strict quality control and most honest management.
7, New plastic materils reel (no easy breaking);
8, Selective high quality wire coils
9, Available for more kinds of rebar tying machines of MAX RB395 /RB397/RB398
10, Fast delivery & professional after sale services.
Galvanized Rebar Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Galvanized Rebar Tie Wire information:
A, Material low carbon steel wire
B , Wire diameter 1mm-5mm
C , Weight 0.05-5kg
D , Surface Black annealed, copper, galvanied or PVC coated
E , Feature It is easy to operate, enhances the working efficiency reduces pollution
F, Use The loop wire es as a binding wire used in packing or construction
Galvanized Rebar Tie Wire Features:
1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding
Galvanized Rebar Tie Wire Packaging Details :
Packaging Details: plastic inside and hessian cloth outside, plastic inside and woven bag outside, or according to customers' requirement.and or 200g,400g,500g, 1kg, 1.42kg(3.5lbs),5kgs ...3.5 lbs/coil, 20 coils/ctn, 48 ctns/pallet, 13 pallets/20GP container.
Small coil silk is a heavy cargo product. In order to facilitate transportation, it is recommended to use pallets for packaging. Each tray is subject to regular fumigation treatment, which can keep dry and odorless in the closed space for a long time. The firm design can provide solid and reliable transportation guarantee for the products.
In order to prevent the products from long-term floating on the sea, the factory puts plastic bags inside each carton to prevent the products from rusting. In addition, it has more beautiful and more guaranteed packaging. Each roll of a small plastic bag and blister treatment strictly controls the contact between the product and the air.
Technical principle of Galvanized Rebar Tie Wire:
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
