Product Details:
Payment & Shipping Terms:
|
Product Name: | Loop Tie Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Loop Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol |
Product Name:: | 1mm Galvanized Double Loop Tie Wire With High Quality | Main Market:: | US,Canada,Mid East Etc |
Certificate:: | ISO 9001 | ||
High Light: | 16 gauge black iron annealed wire,double loop black iron annealed wire,16 gauge annealed black iron wire |

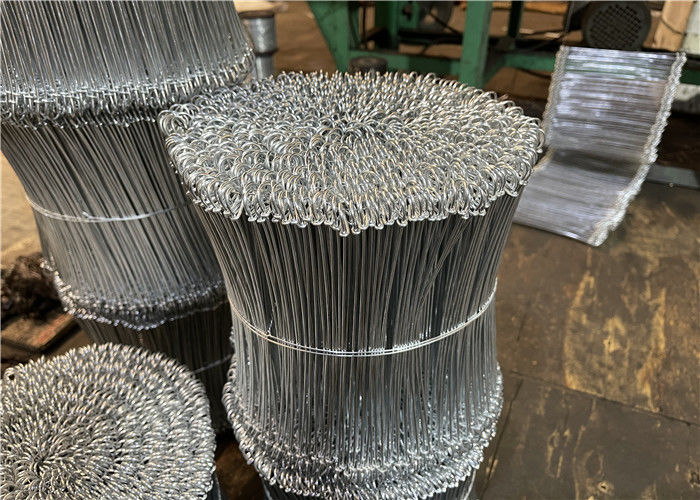

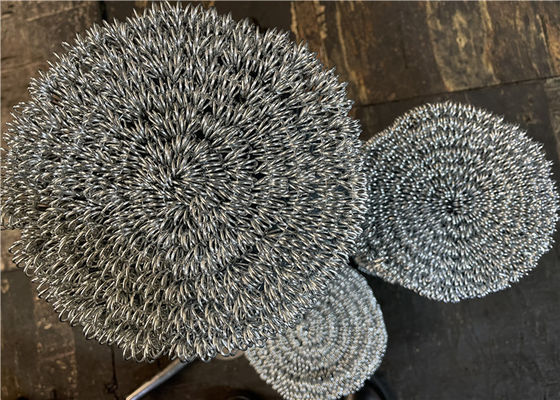

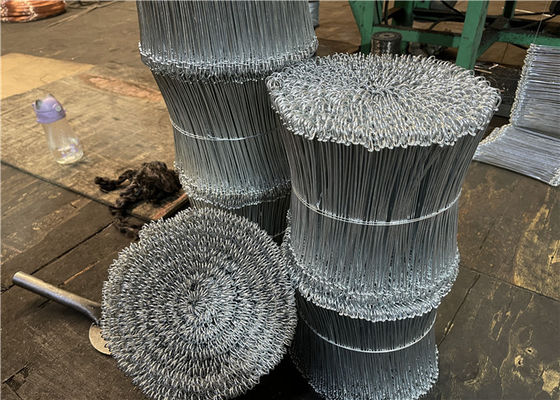

16 Gauge Black Annealed Double Loop Tie Wire Bag Wire Ties Metal Tie Wire
Metal Tie Wire introduction
Metal tie wire is also known as tie wire or binding wire. It is easy to operate, therefore it's widely uses in binding of different materials, especially for daily use. The main materials of loop tie wires are galvanized iron wire, black annealed iron wire, PVC-coated iron wire and copper wire.
Product name:Double Loop Rebar Wire,Loop Wire,Bar Tie
urface:Black , galvanized , pvc coated
Wire diameter: 0.7 mm - 4 mm.
Length: from 4" - 24".
Raw material:Q195 Q235 SAE1006 SAE1008
Wire diameter and lengths can be made according to your needs.
the common one is 16 gague black annealed double end loop tie wire, with length 6'
Metal Tie Wire Data :
Product name: | Double Loop Rebar Wire,Loop Wire,Bar Tie |
Surface: | Black , galvanized , pvc coated |
Common diameter: | 17G 16G, customerized |
Raw material: | Q195 Q235 SAE1006 SAE1008 |
Packing: | general 500 or 1000pcs/bundle,plastic bag,then several bags in a carton with pallets,also just woven bags with pallets Our packing also can be as per buyer's requirement. |
Usage : | tie wire |
Metal Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Metal Tie Wire Features
1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding
Metal Tie Wire Usage / Application
Use a kind of wire twister to tie the two ends of the double loop wire together.
Loop tie wire How to use: Hook the two rings of the buckle with a hooked wire tool and tighten it in one direction.
Used as tie wires to bind bags and rebars.
Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises
Applied in the farm to bundle twigs.
erecting and joining support structur
Tying bags or as a ma or laundry bag seal
Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.
Small coil wire tie finds most uses in binding of different materials especially for daily use
Loop tie Wire information:
A, Material low carbon steel wire
B , Wire diameter 1mm-2mm
C , Length4-24inch
D , Surface Black annealed, copper, galvanied or PVC coated
E , Feature It is easy to operate, enhances the working efficiency reduces pollution
F, Use The loop wire es as a binding wire used in packing or construction
Technical principle of Metal Tie Wire :
Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
Metal Tie Wire Process :
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment
Our services
Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.

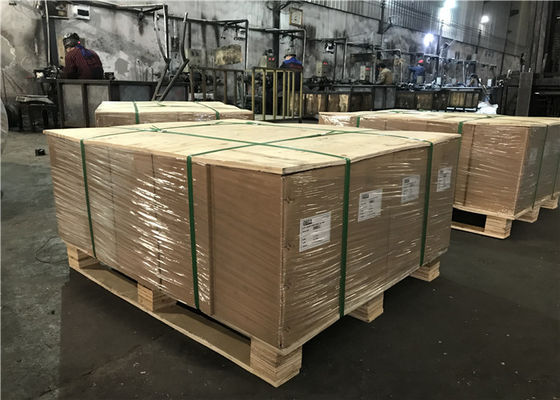

Metal Tie Wire Packaging Details
1. Bundled together by tie wire.
2. plastic inside and cartons outside.
3. plastic inside and woven bags outside.
4. water-proof paper inside and woven bags outside
5. or as your demand
