Product Name: | Loop Tie Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Loop Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol |
High Light: | 50m Metal Tie Wire,350mpa Metal Tie Wire,350mpa Loop Tie Wire |

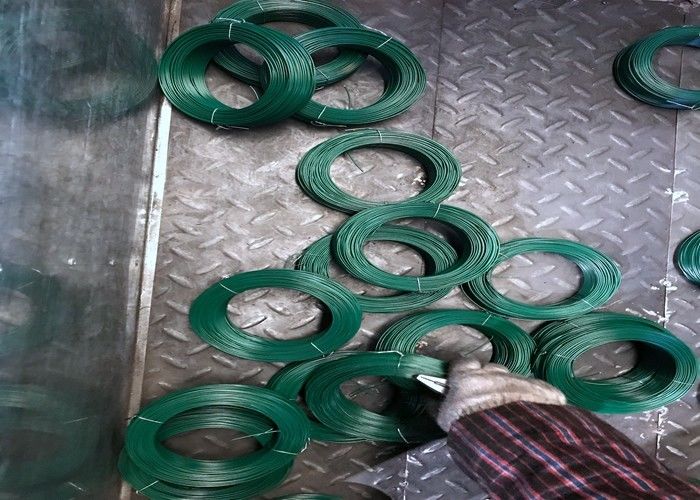

50m Green Soft Pvc Coated Coiled Wire For Garden And Agriculture Metal Tie Wire
Metal Tie Wire Data :
Product name: | Double Loop Rebar Wire,Loop Wire,Bar Tie |
Surface: | Black , galvanized , pvc coated |
Material | Material low carbon steel wire |
Common diameter: | 17G 16G, customerized |
Raw material: | Q195 Q235 SAE1006 SAE1008 |
Packing: | general 500 or 1000pcs/bundle,plastic bag,then several bags in a carton with pallets,also just woven bags with pallets Our packing also can be as per buyer's requirement. |
Usage : | Use The loop wire es as a binding wire used in packing or construction |
Feature | It is easy to operate, enhances the working efficiency reduces pollution |
Metal Tie Wire Features
1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding
Metal Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Metal Tie Wire Usage / Application
Use a kind of wire twister to tie the two ends of the double loop wire together.
Loop tie wire How to use: Hook the two rings of the buckle with a hooked wire tool and tighten it in one direction.
Used as tie wires to bind bags and rebars.
Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises
Applied in the farm to bundle twigs.
erecting and joining support structur
Tying bags or as a ma or laundry bag seal

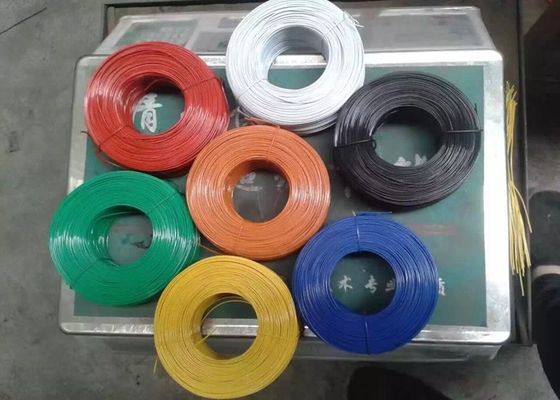

Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.
Small coil wire tie finds most uses in binding of different materials especially for daily use
Technical principle of Metal Tie Wire :
Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.

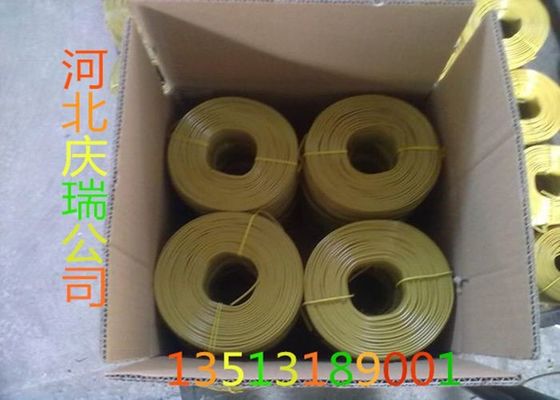

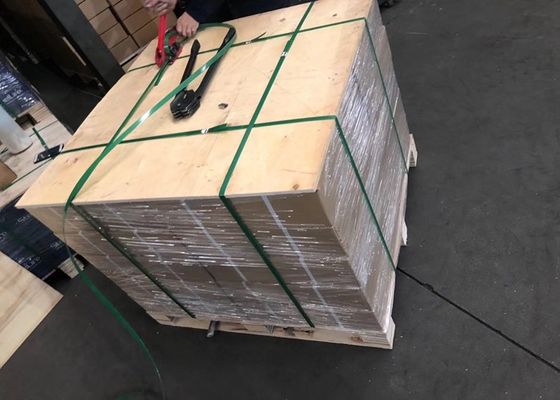

Metal Tie Wire Packaging Details
1. Bundled together by tie wire.
2. plastic inside and cartons outside.
3. plastic inside and woven bags outside.
4. water-proof paper inside and woven bags outside
5. or as your demand
