Product Name: | Double Loop Tie Wire | Surface Treatment: | Black/pvc/galvanized |
---|---|---|---|
Type: | Loop Tie Wire | Function: | Baling Wire |
Model Number: | Q195/Q235 | Application: | Building / Rebar Ties |
Tensile Strength: | 350-550mpa | Size: | BWG8-BWG22 |
Material: | Q195/Q235/SAE1006/SAE1008 | Package: | 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol |
High Light: | twin loop metal tie wire,5000pcs metal tie wire,SAE1008 Metal Tie Wire |

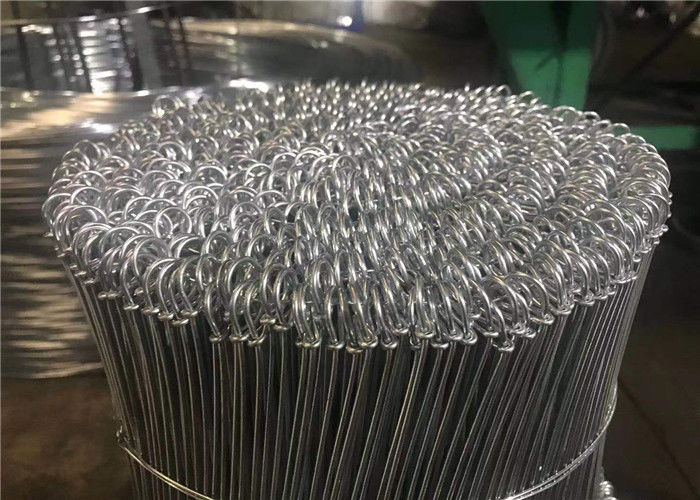

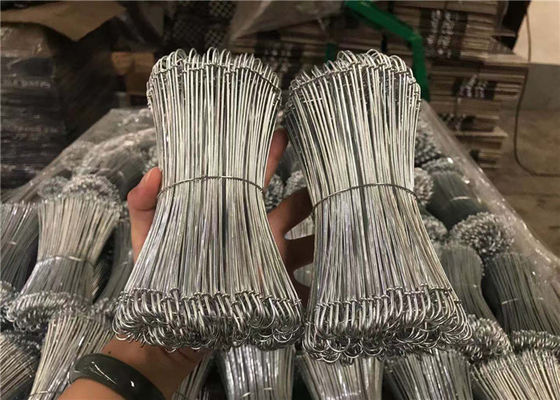

5000 Pcs BWG8 BWG22 Q195 Iron Double Loop Tie Wire
Double Loop Tie Wire introduction
Double loop tie wire also named bag tie wire.
Types: copper double loop tie wire, galvanized double loop tie wire, PVC coated double loop tie wire, stainless steel double loop tie wire, etc.
PVC coated color: green, blue, black, yellow, red, etc.
Wire diameter: 0.7 mm - 4 mm.
Length: from 4" - 24".
Features: good corrosion resistance, clean and convenient, unbreakable, durable and easily twist.
Double Loop Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Double Loop Tie Wire Applications:
Method of application: use a kind of wire twister to tie the two ends of the double loop wire together.
Technical principle of Double Loop Tie Wire :
Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
Packing: plastic bags, cartons, trays packing. Usually 4" - 12" length 5000 per/bag, 14" - 24" length 2500 per/bag.
